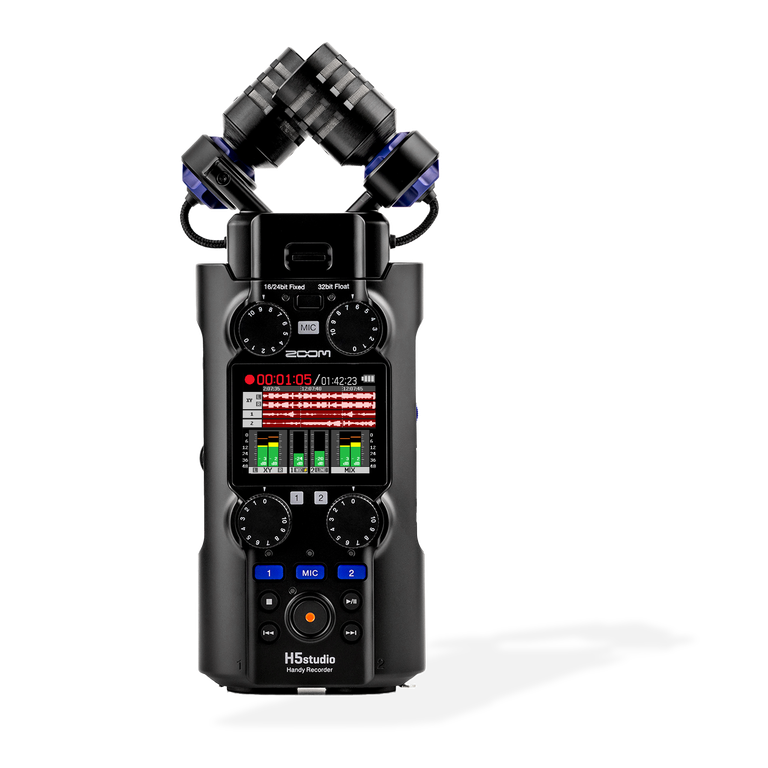

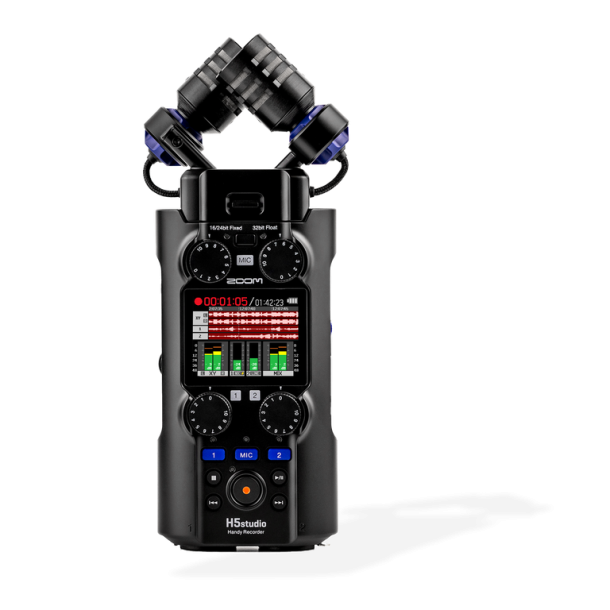

ZOOM H5 Studio

2.889,00 DKK

Your Best Work Starts Here, Topsælgeren er igen til omgående levering.

The H5studio was made for seamless and professional production. Creators can record flawless audio with stunningly clear microphones, studio-grade preamps, and 32-bit float recording.

F-Series Preamps,
Now in Your Hands

The H5studio's inputs feature our F-series preamps, giving your audio unmatched clarity (-127 dBu EIN).  With dual AD converters and
32-bit float, they deliver an impressive 132dB dynamic range, capturing everything without noise or distortion.

Complete Control, Zero Clipping

32-bit float and 16/24-bit formats each have their advantages. 32-bit float prevents clipping but requires
post-production. 16/24-bit eliminates the need for post-processing but requires gain adjustment to prevent clipping.

The H5studio offers the best of both worlds with 32-bit float and dedicated gain knobs—no clipping and no need for post-production.

Model/Varenr.: 4007
Lagerstatus: Oplys Leveringstid -- Forespørgsel info@bjoernholt.dk
stk.

Gratis fragt på køb over 1500,-, Max 20 Kg.

levering ved lager i Butik 1-3 hverdage

100 % Dansk Webshop

Ring til os på 86822644

14 dages returret på Webshoppen

nputs Mic capsule 1
  MIC/LINE (mono) 2
Outputs LINE OUT 1
  Headphone 1
  Built-in speaker (mono) 1


INPUTS

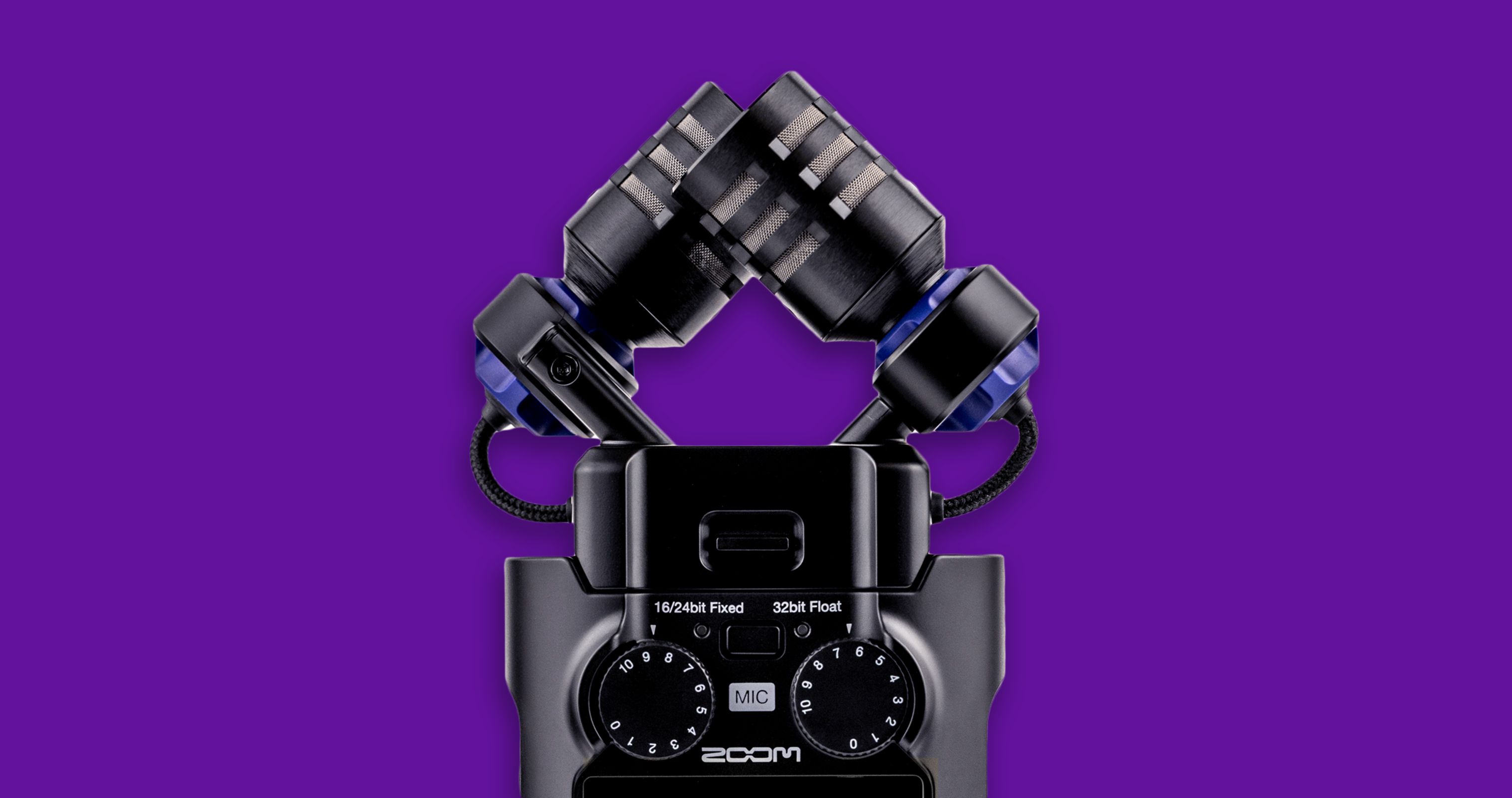

XY mic: XYH-5s 90º XY stereo format
  Pickup pattern Unidirectional
  Sensitivity –41 dB/Pa at 1 kHz
  Maximum sound pressure input 140 dB SPL
MIC/LINE IN: XYH-5s Connector 1 stereo mini jack
  Input gain −∞ – +60 dB
  Input impedance 2 kΩ or more
  Plug-in power 2.5 V
MIC/LINE (mono) Connectors 2 XLR/TRS combo jacks
    (XLR：2 HOT TRS：TIP HOT）
  Input gain −∞ – +60 dB
  Input impedance MIC: 3 kΩ or more
    LINE: 3 kΩ or more
  Maximum input level MIC: +4 dBu
    LINE: +24 dBu
  Phantom power +48 V
  Equivalent input noise –127 dBu or less (IHF-A) at 150Ω input


OUTPUTS

LINE OUT Connector 1 stereo mini jack
  Maximum output level +1 dBu
  Output impedance 110 Ω or less
Headphone Connector 1 stereo mini jack
  Maximum output level 20 ｍW + 20 ｍW（when 32 Ω load）
  Output impedance 10 Ω or less
Built-in speaker Type 20 mm x 30 mm elliptical dynamic speaker
  Effective maximum output 250 mW


RECORDER

Maximum simultaneous recording tracks 6
Maximum simultaneous playback tracks 4
Recording formats WAV
  44.1/48/96/192 kHz,
  16-bit/24-bit/32-bit float
  mono/stereo
  BWF and iXML formats supported
Recording media microSDHC memory cards
  microSDXC memory cards


CLICK HERE for information about microSD cards that have been confirmed to work with this unit.

DISPLAY

2.00" full-color LCD 320 x 240


USB

Connector   USB Type-C
    • Use a USB cable that supports data transfer.
Audio Interface   USB 2.0 High Speed
  Input and output channels 4 in / 2 out (Multi)
    2 in / 2 out (Stereo)
  Sampling frequencies 44.1/48/96 kHz (audio interface only)
    44.1/48 kHz (audio interface + onboard recording)
  Bit depths 24-bit, 32-bit float
File transfer   USB 2.0 High Speed


REMOTE

Dedicated wireless adapter ZOOM BTA-1


POWER

4 AA batteries Alkaline, lithium or rechargeable NiMH batteries
AC Adapter ZOOM AD-17 (DC 5 V/1 A)
  • USB bus power is supported.


ESTIMATED CONTINUOUS OPERATION TIMES USING BATTERIES : 2-track (XYH-5s) recording

Alkaline batteries About 15 hours
NiMH batteries (1900 mAh) About 13 hours
Lithium batteries About 21 hours
